Best outdoor drainage channel kits for 2026
The NDS Pro Series Plastic Grate Kit is the best outdoor drainage channel kit here for most patios and driveways because it combines a deep 5-inch channel with 72 GPM per foot and several outlet choices. A channel drain is only useful when its outlet, grate and load class match the surface around it, so this comparison focuses on those details rather than a generic promise to solve standing water.
Outdoor drainage channel kits compared
| Product | Best for | Price |
|---|---|---|
| NDS Pro Series Plastic Grate Kit | Best overall | View |
| NDS Pro Series Steel Grate Kit | Best for a finished hardscape | View |
| VEVOR Six-Pack Trench Drain | Best for long runs | View |
What separates a useful channel drain from a frustrating project
Surface drains work as a system: water enters through the grate, travels along the channel, then exits to compatible pipe or another approved discharge route. The first practical choice is depth and capacity. The two NDS kits use a 5-inch deep Pro Series channel, but the plastic-grate version lists 72 GPM per foot and 23.5 square inches of open surface per linear foot. The steel-grate version lists 59 GPM per foot and 19.32 square inches. Those are not interchangeable figures, so use the listing for the exact kit rather than assuming every Pro Series channel is the same.
Connection planning matters just as much. Both NDS options provide a bottom outlet for 3-inch and 4-inch sewer-and-drain fittings. Their side and end connections serve 3-inch pipe, with the end also accepting 4-inch sewer-and-drain fittings. That gives a homeowner flexibility when a pipe run must turn away from a wall, but it does not remove the need to establish slope, pipe route and discharge method before concrete work begins.
1. NDS Pro Series Plastic Grate Kit: best overall

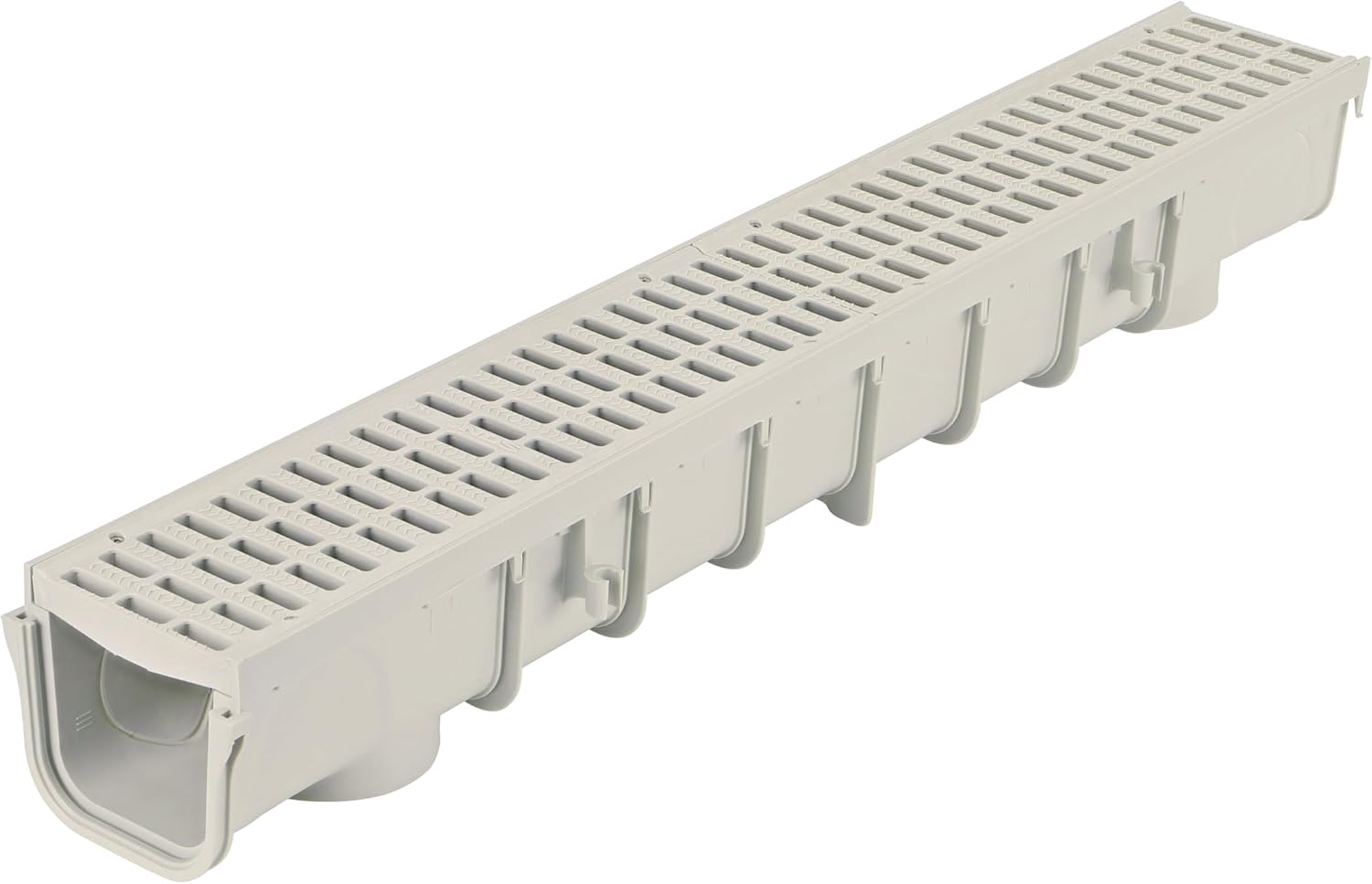

NDS Pro Series Plastic Grate Kit
The NDS plastic-grate kit earns the overall pick because its listing combines a 5-inch Pro Series channel with a stated 72 GPM-per-foot flow rate and 23.5 square inches of open surface per linear foot. It also includes the channel, polyethylene grates, an end cap/outlet and an end cap, so it is a more complete starting point than a bare channel. The bottom outlet fits 3-inch and 4-inch sewer-and-drain fittings, while side and end outlet options support different pipe routes. Choose it for a homeowner planning a patio, pool-deck or driveway-edge drain who wants documented flow figures and modular expansion. Its real limitation is that the kit is rated Class B only when properly installed, so the concrete surround and intended pneumatic-tire traffic still need to fit that application rather than being treated as an all-purpose commercial drain.
Pros
- Lists 72 GPM per foot and 23.5 square inches of open area per linear foot
- Bottom outlet accepts 3-inch and 4-inch sewer-and-drain fittings
- Kit includes polyethylene grates plus an end cap and end cap/outlet
- Sections can connect for longer runs or be cut to shorter lengths
Cons
- Class B load rating depends on correct installation and is not a heavy commercial specification
- Side outlet is for 3-inch sewer-and-drain pipe, which may narrow an existing-pipe retrofit
- A separate downstream pipe and discharge plan are still required
2. NDS Pro Series Steel Grate Kit: best for a finished hardscape

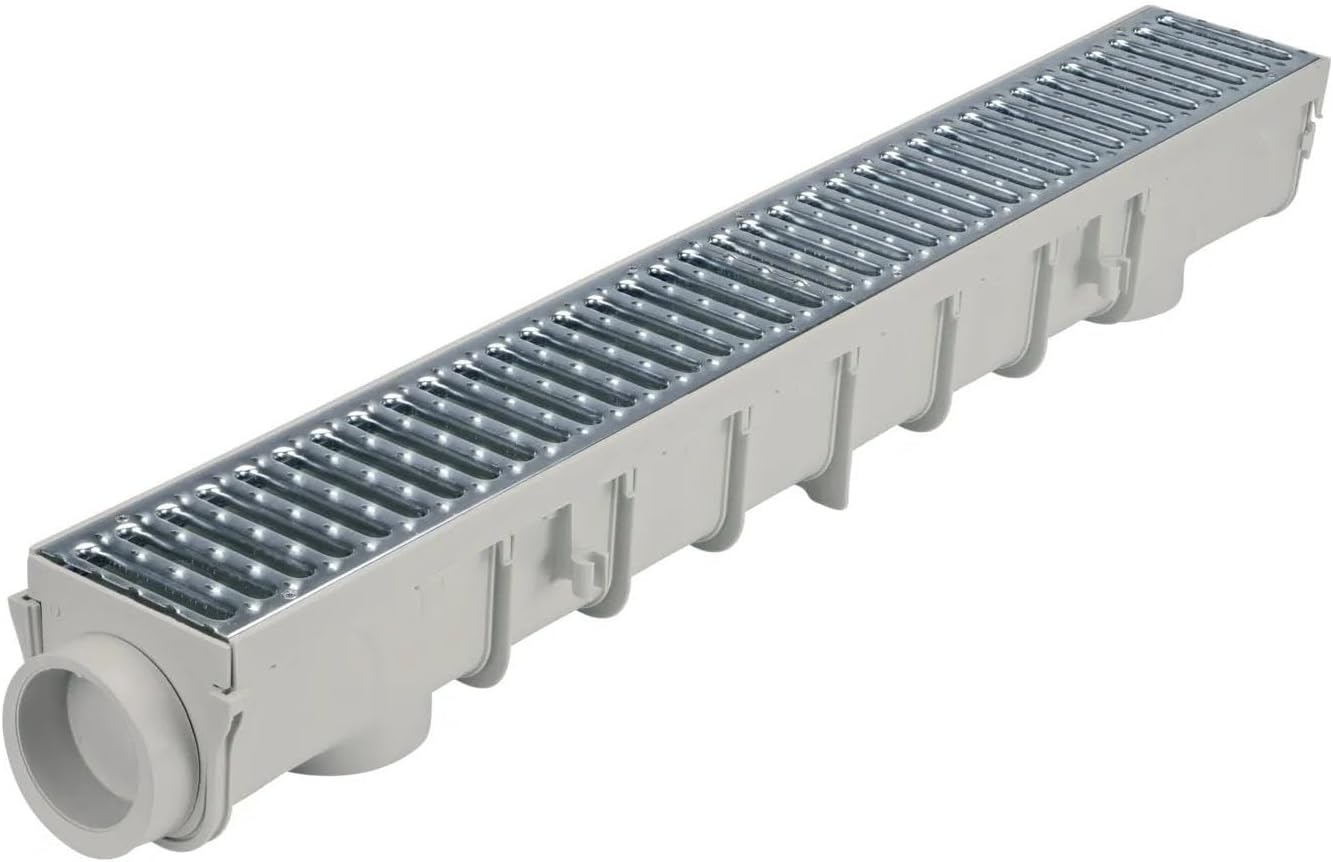

NDS Pro Series Steel Grate Kit
This NDS kit is the more appearance-conscious option for a paved edge because it pairs the 5-inch deep Pro Series channel with galvanized steel grates rather than polyethylene grates. The listing specifies 59 GPM per foot, 19.32 square inches of open surface per linear foot, and an included end cap/outlet plus end cap. Its bottom outlet fits 3-inch and 4-inch sewer-and-drain fittings, and channels can be connected or cut to a custom length. It is a sound choice when the visible grate finish matters on a patio, walkway or driveway threshold and the proposed layout fits its documented 59 GPM-per-foot capacity. The tradeoff is clear: it is not the higher-flow NDS option in this comparison, and galvanized steel still benefits from routine debris removal and inspection in wet outdoor locations.
Pros
- Galvanized steel grates give this kit a different visible finish from the plastic-grate option
- Includes a 5-inch deep channel, end cap/outlet and end cap
- Bottom outlet works with 3-inch and 4-inch sewer-and-drain fittings
- Interlocking channels can be extended or cut for a custom run
Cons
- Listed flow rate is 59 GPM per foot, lower than the plastic-grate NDS kit
- Galvanized grate surfaces need debris clearing and condition checks outdoors
- Class B suitability still relies on a correct installation around the channel
3. VEVOR Six-Pack Trench Drain: best for long runs

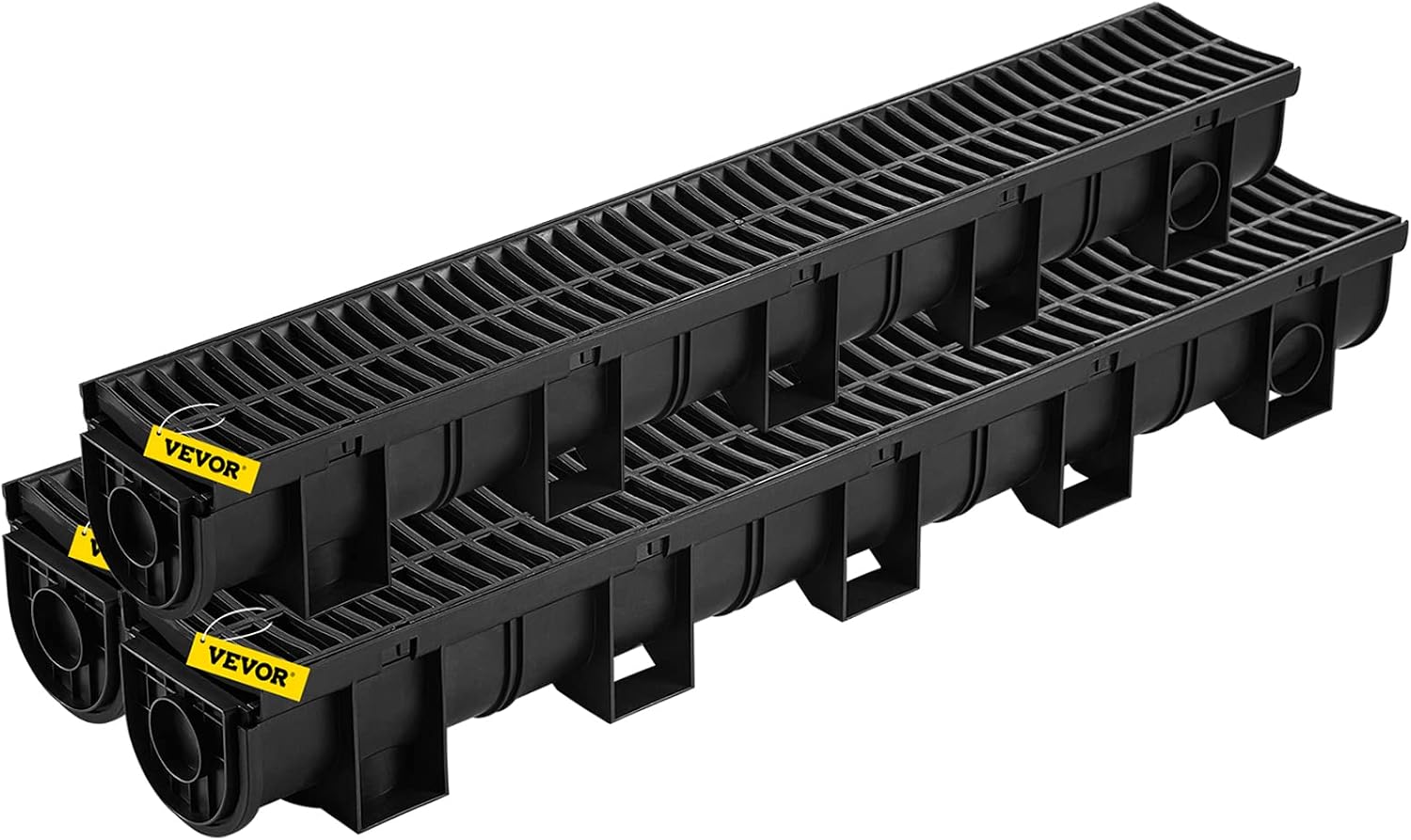

VEVOR Six-Pack Trench Drain
VEVOR is the practical pick for a longer collection line because this pack contains six 39.4-inch channels, six plastic grates and six end caps. Each black HDPE channel measures 5.9 inches wide by 5.1 inches high by 39.4 inches long, and the sections interlock to extend the run. Its built-in outlet choices are unusually flexible on paper: 3.1-inch and 3.6-inch bottom outlets plus a 2.2-inch side outlet, with the listing identifying the 3.1-inch outlet as suitable for standard 3-inch pipe. Pick it for a long straight drain beside a garden, driveway or garage approach where multiple matching sections are useful. Its limitation is that the pack is larger and its outlet sizes are not the same language as standard NDS fittings, so buyers should map every transition before ordering pipe or pouring concrete.
Pros
- Six 39.4-inch channels provide a substantial starting run without buying individual sections
- Each channel includes a removable plastic grate and the pack includes six end caps
- Interlocking sections extend the channel line without separate couplers
- Built-in 3.1-inch, 3.6-inch and 2.2-inch outlet options suit different layouts
Cons
- Outlet sizes must be matched carefully to the pipe and adapters available for the project
- A six-section pack can be excessive for a short doorway or small patio edge
- Plastic grates give a different appearance from the NDS galvanized-steel kit
Buying and installation checks before ordering
Measure the finished collection line, not just the visible puddle. Water often enters a channel from a broad slab area, so the grate needs to sit at the lowest planned point without creating a trip edge. Then identify where the outlet pipe will go. A channel drain cannot send water uphill, and connection compatibility is not a substitute for a correctly designed slope and legal discharge location.
Match the grate and load rating to traffic. The NDS product pages identify Class B capability up to 175 psi when properly installed, with the plastic kit described for medium-duty pneumatic-tire traffic and the steel kit for light traffic applications. Treat that as a limit tied to installation, not as permission to use either one everywhere. For locations with unfamiliar vehicle loads, consult local requirements and a drainage professional before choosing a kit.
Finally, plan maintenance. Leaves, mulch, sand and roof debris collect at the grate, so a removable grate is valuable only if the channel remains accessible for cleaning. The VEVOR listing says its grates detach without screws or bolts; NDS channels also need a reachable layout once the surrounding hardscape is complete. A cleanable route and an outlet that stays clear are more important over time than the initial channel length.
FAQ
What size channel drain is right for a patio or driveway?
Choose from the expected runoff, the available depth and the planned outlet pipe, not from surface width alone. In this comparison, the NDS plastic-grate kit lists 72 GPM per foot while the steel-grate kit lists 59 GPM per foot. Those figures help compare the exact products, but site slope, rainfall, contributing area and local drainage rules still determine the correct system size.
Can these outdoor drainage channel kits connect to 4-inch pipe?
Both NDS kits list a bottom outlet that accepts 3-inch and 4-inch sewer-and-drain fittings. Their end outlet also accepts 4-inch sewer-and-drain fittings, while the side outlet is specified for 3-inch pipe. The VEVOR listing uses 3.1-inch and 3.6-inch bottom outlet dimensions, so confirm the needed adapter or pipe match before installation.
Are channel drain grates easy to maintain?
They can be, if the channel is accessible. The VEVOR product lists removable grates that install and detach without screws or bolts. NDS systems use grates above a channel that must also be kept clear. Regularly lift the grate, remove sediment and check the outlet path, especially after leaf fall or a storm that carries soil onto the paving.
