Best Rain Barrel Overflow Kits for 2026
Compare rain barrel overflow kits for 2026: automatic diverters, fittings and filters that help route roof water without soaking foundations.
Disclosure: As an Amazon Associate, I earn from qualifying purchases.
Prices and availability are accurate as of the time of publication and are subject to change.
The RainReserve Complete Diverter Kit is the best rain barrel overflow kit for most homes because it sends excess water and roof debris back through the downspout while offering two barrel outlets. A rain barrel needs a deliberate full-barrel route: a hose dumped beside a wall can create the very pooling the system was meant to avoid.
How rain barrel overflow kits solve the real problem
An overflow arrangement has two jobs. It must fill a barrel without letting leaves and grit make their way through an open top, and it must give water somewhere safe to go once the container is full. A conventional top-fill barrel can meet the first job with a screen, but the second job is where routing and capacity matter. Overflow should travel away from the foundation and should not rely on an unplanned puddle or a blocked extension.
The three products here approach that job differently. RainReserve is a complete diverter system designed to return debris and overflow to the downspout. EarthMinded is a full DIY parts kit built around its FlexiFit diverter for a 3 x 4 inch rectangular downspout. The Downspout Filter Connector is a 3 x 4 inch collection connector with a colander and filter, useful where keeping debris out is the priority, but it does not replace planning a separate barrel overflow.
Before choosing, measure the flat faces of the downspout rather than estimating from the gutter. Then decide whether one barrel is enough, whether a second barrel will sit at the same level, and where water can discharge during a storm. Check local rainwater rules, keep the barrel on a level load-bearing base, and do not treat collected roof water as drinking water without suitable treatment.
| Product | Best for | Price |
|---|---|---|
| RainReserve Complete Diverter Kit | Automatic overflow and two-barrel expansion | View |
| EarthMinded 3 x 4 Diverter Kit | A complete kit on a 3 x 4 downspout | View |
| Downspout Filter Connector | Filtering a 3 x 4 collection inlet | View |
Best overall: RainReserve Complete Diverter Kit
RainReserve Complete Diverter Kit
RainReserve is the strongest all-round choice when a downspout needs to keep doing its normal drainage job after the barrel fills. Its complete kit is supplied without the barrel, while the diverter is designed to direct collected water into the barrel and return both debris and overflow through the existing downspout. The system has dual outlet ports, so it can fill two barrels at once, and it is specified for standard 2 x 3 and 3 x 4 inch downspouts with an adapter. That combination earns the badge: it treats overflow as part of the gutter system rather than an afterthought. Choose it for a first installation that may expand to paired barrels. The tradeoff is installation space and routing: two outlet ports do not make mismatched barrel heights work, and you still need a stable base and a clear path at ground level.
Pros
- Returns overflow and roof debris to the existing downspout
- Dual outlet ports can supply two barrels at the same time
- Adapter supports both common 2 x 3 and 3 x 4 rectangular downspouts
Cons
- The barrel itself is not included with the complete diverter kit
- Two-barrel layouts require both containers to be level and securely supported
Best for a 3 x 4 downspout: EarthMinded 3 x 4 Diverter Kit

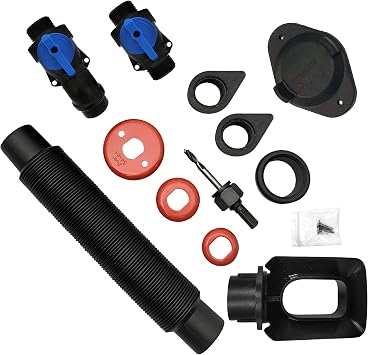

EarthMinded 3 x 4 Diverter Kit
The EarthMinded kit is the more focused pick for a confirmed 3 x 4 inch rectangular downspout and a do-it-yourself barrel conversion. Its FlexiFit diverter is made for that downspout size and automatically passes excess water through the downspout once the barrel is full. The listed kit includes a 31-inch fill hose, barrel spigot, drain and cover, hole-saw set, seals, screws and an installation guide, which removes much of the parts matching that can delay a first build. It is a sound choice for someone starting with a suitable container and wanting the fitting hardware together. Its limitation is fit: it is not the right shortcut for a 2 x 3 downspout, and drilling the barrel and downspout accurately is still part of the job.
Pros
- FlexiFit diverter is specified for a 3 x 4 inch rectangular downspout
- Includes a 31-inch fill hose plus spigot, drain, cover and water seals
- Hole-saw set and installation guide support a from-scratch barrel conversion
Cons
- It is size-specific, so a 2 x 3 downspout needs a different solution
- Installation requires accurately drilling both the barrel and downspout
Best for filtered collection: Downspout Filter Connector
Downspout Filter Connector
This white 3 x 4 inch Downspout Rainwater Collection Diverter Connector is the specialist choice when a simple collection inlet needs a colander and filter. Those two built-in elements give roof grit and leaf fragments a place to be stopped before they enter a barrel, which can reduce cleanup compared with a plain open inlet. It is best for a small system where the installer already has a barrel, hose plan and overflow outlet, and wants a connector that targets inlet cleanliness rather than a full hardware bundle. The important limitation is its scope. The product is sold as a connector system with filter, not as a complete automatic-overflow kit with a spigot and barrel fittings. Pair it with a properly sized screened barrel and an independently planned overflow route.
Pros
- Colander and filter are built into the rainwater collection connector
- Made for a 3 x 4 inch downspout collection connection
- Useful when the barrel hardware and overflow outlet are already chosen
Cons
- It does not provide the complete spigot and barrel-fitting package of a DIY kit
- A separate overflow route must be designed for a full barrel
What to check before installation
Start with the downspout. A 3 x 4 connector cannot be made reliably watertight on a different rectangular size by forcing it or adding tape. Place the diverter at the height stated in its instructions, and route any fill hose without kinks or uphill sections that trap water. A sealed connection and a screened barrel opening help limit insects and debris, but they do not change the weight of stored water: the base must stay level when the barrel is full.
Next, run a controlled water test before the first major storm. Watch the inlet, the barrel connection and the downspout below the diverter. For automatic systems, confirm that water resumes its gutter route as the barrel reaches full. For a filter connector, confirm the external overflow outlet handles the flow rather than waiting to discover it during heavy rain. Clear filters and gutter screens regularly, especially after leaf drop.
FAQ
Do I need an overflow hose with an automatic diverter?
Usually not as the primary full-barrel route when the diverter is designed to return excess water through the downspout. Follow that product's instructions and verify the downspout continues to drain away from the house. A separate barrel outlet can still be useful for controlled linking or draining, but it should not undermine the automatic system's intended water level.
Can I connect two rain barrels to one downspout?
Yes, if the diverter supports two outlets and both barrels are placed on stable, level bases. The RainReserve design has dual outlet ports, but the containers need compatible fill heights and secure connections. Do not assume a second barrel fixes overflow by itself: test the setup while watching where water travels after both barrels are full.
Why is a filtered connector not enough for overflow protection?
A filter addresses what enters the barrel, while overflow protection addresses where water goes after the barrel is full. The Downspout Filter Connector includes a colander and filter, but the installer still needs a safe overflow outlet or compatible barrel arrangement. Treat inlet filtering and full-barrel routing as two separate checks in every rainwater system.
Prices and availability are accurate as of publication and can change.
