Best hose bibb backflow preventers for 2026
Compare hose bibb backflow preventers for 2026, including thread fit, self-draining designs and practical choices for safer outdoor faucet repairs today.
Disclosure: As an Amazon Associate, I earn from qualifying purchases.
Prices and availability are accurate as of the time of publication and are subject to change.
The Eastman 20199 is the best hose bibb backflow preventer here for a typical faucet with a standard 3/4-inch hose-thread outlet. It combines the common female-hose-thread to male-hose-thread layout with a self-draining brass body, so it is the straightforward choice when an add-on vacuum breaker is actually compatible with the faucet.
How to choose a hose bibb backflow preventer
A hose connection vacuum breaker is intended to stop backsiphonage at a threaded faucet when a connected hose could be exposed to non-potable water. That function matters around fertilizer mixing, wash buckets and outdoor cleaning, but it does not turn every hose fitting into a universally approved backflow assembly. Local rules, the existing faucet, and the kind of downstream attachment still decide what is suitable. This comparison is buying guidance, not plumbing-code advice.
Start with the outlet. The Eastman and Cash Acme models are add-on devices for a 3/4-inch hose-thread connection. The Arrowhead is different: its inlet is a 1-1/16-inch fine thread made for particular Arrowhead wall-hydrant assemblies, while its outlet returns to a 3/4-inch male hose thread. A breaker that looks close can still fail to seat, leak, or damage threads if that distinction is missed.
Then consider drainage and pressure. All three are meant for removable hose connections, not a permanently pressurized line. A timer, Y-splitter with closed branches, or shutoff nozzle can leave pressure downstream after the faucet is opened. Manufacturers specifically caution against continuous-pressure use for these self-draining styles. If that describes the installation, pause and ask a qualified local professional which approved arrangement is required.
| Product | Best for | Price |
|---|---|---|
| Eastman 20199 | Standard 3/4-inch hose-thread add-on | View |
| Cash Acme VB-222 | Self-draining protection after hose removal | View |
| Arrowhead PK1390 | Matching Arrowhead fine-thread repairs | View |
1. Eastman 20199: best overall

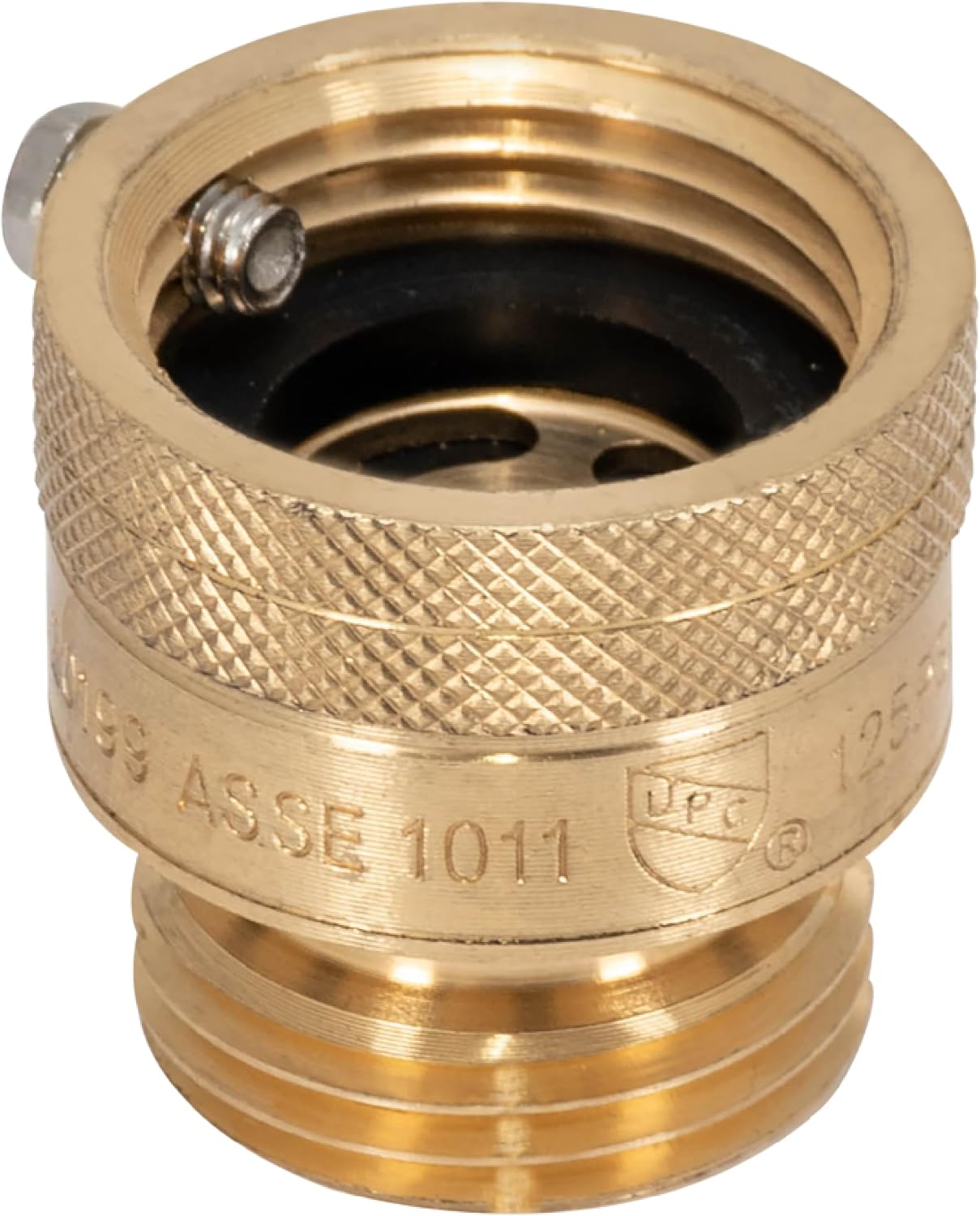

Eastman 20199 vacuum breaker
Eastman's 20199 is the sensible first choice for a conventional outdoor faucet because its documented 3/4-inch female hose-thread inlet and 3/4-inch male hose-thread outlet match the familiar hose-bibb format. The brass fitting is self-draining and has a break-off screw for a permanent installation, while the product documentation lists a 125 PSI maximum working pressure and ASSE 1011 approval. It earns the overall badge because it addresses the most common replacement situation without adding a proprietary fitting system. Choose it when the existing faucet truly presents standard hose threads and the old device is an add-on, not an integral specialty part. Its limitation is important: its drain function and hose-thread shape do not make it suitable for every faucet, timer, or constant-pressure arrangement.
Pros
- 3/4-inch FHT inlet and 3/4-inch MHT outlet suit a standard hose-bibb outlet
- Self-draining construction helps clear water after the faucet is shut off
- Break-off screw supports a tamper-resistant permanent attachment
Cons
- Will not fit a faucet that needs a fine-thread manufacturer-specific replacement
- Not the right device for a hose timer or other setup left under continuous downstream pressure
2. Cash Acme VB-222: best for cold climates

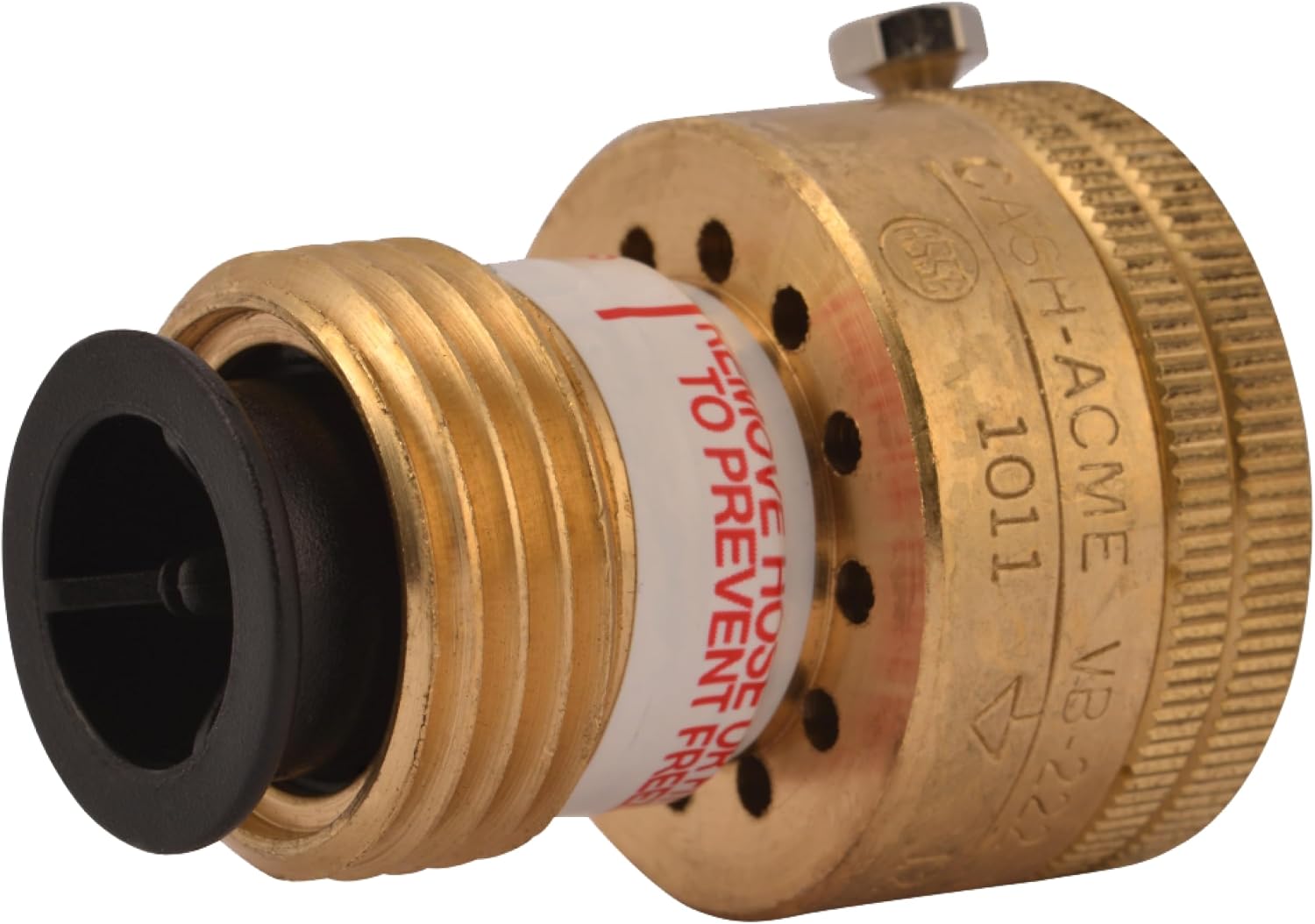

Cash Acme VB-222
The Cash Acme VB-222 is the pick for an exposed standard hose connection where automatic drainage is the deciding feature. Its 3/4-inch hose-thread model has a locking screw and the manufacturer says it drains automatically only after attachments are completely removed from the outlet. That detail is useful for seasonal routines because trapped water is what can damage a valve or faucet in cold weather. The brass body, stainless-steel spring, Buna-N sealing parts, 125 PSI rating and 180 F maximum temperature are documented specifications, and it is listed to ASSE 1011. Buy it for a removable-hose faucet where you will disconnect the hose when done. Do not treat "self-draining" as freeze-proof magic: leaving an attachment on, or using a closed downstream device, can prevent the intended draining and it is not for continuous pressure.
Pros
- Automatically drains after all outlet attachments are removed
- Locking screw helps keep the 3/4-inch hose-thread fitting in place
- Brass body with stainless-steel spring and Buna-N sealing components
Cons
- Drainage depends on removing the hose or accessory completely
- Manufacturer excludes permanent continuous-pressure installations
3. Arrowhead PK1390: best replacement fit

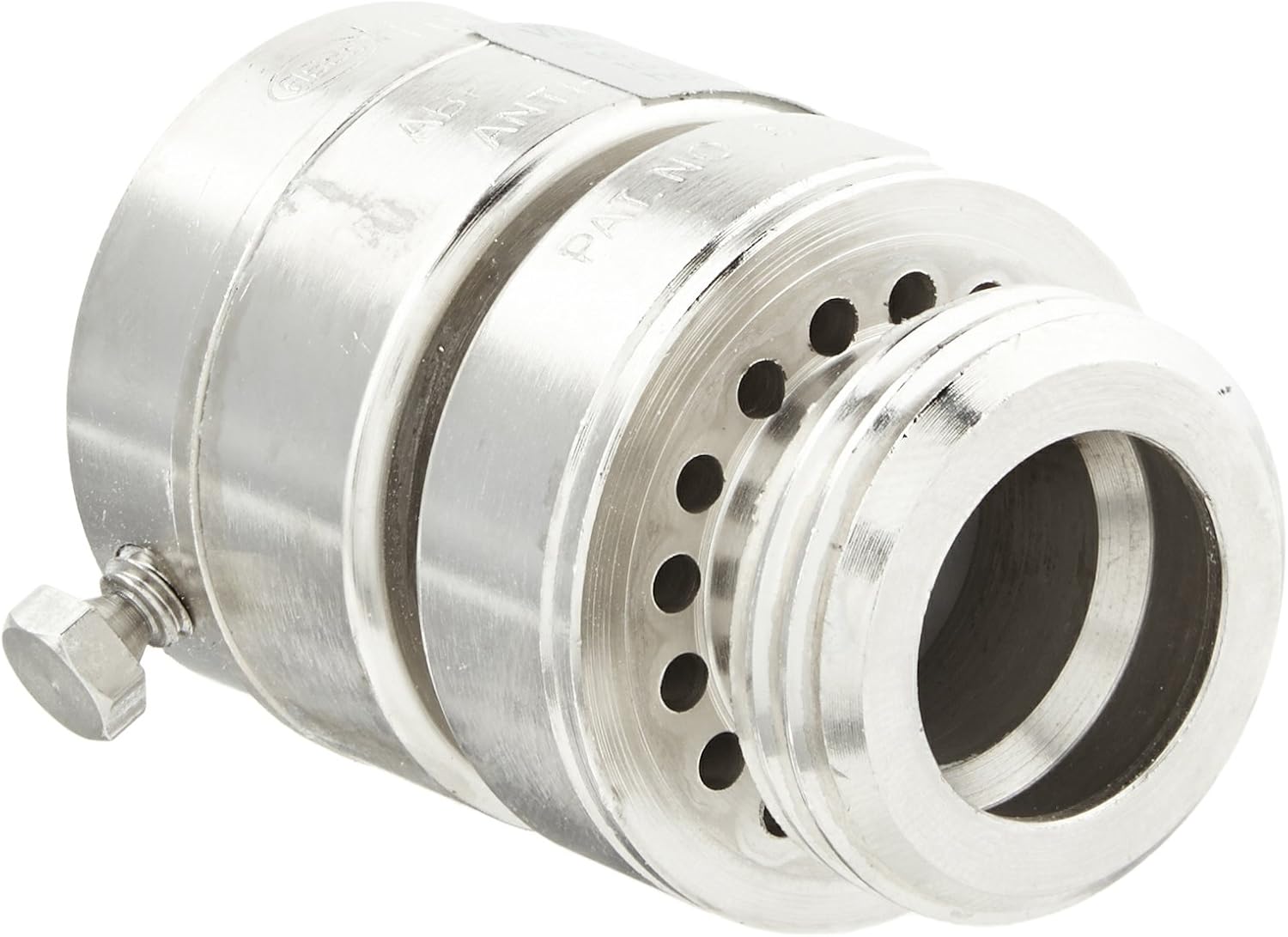

Arrowhead PK1390
The Arrowhead PK1390 is not a general-purpose screw-on choice, which is exactly why it is valuable for the right repair. It uses a 1-1/16-inch fine-thread inlet for compatible Arrowhead wall hydrants and provides a 3/4-inch male hose-thread outlet for the garden hose. The nickel-plated, lead-free brass replacement self-drains after shutoff, carries ASSE 1011 and NSF/ANSI 372 certifications, and is rated to 125 PSI and 180 F. Select it when the old Arrowhead breaker and faucet identify this fine-thread pattern, ideally after confirming the original top section is fully removed. Its tradeoff is strict compatibility: it should not be forced onto an ordinary 3/4-inch hose-thread outlet. Arrowhead also warns that its self-draining breaker is not for constant-pressure uses and needs the faucet arranged so drainage can occur.
Pros
- 1-1/16-inch fine-thread inlet targets compatible Arrowhead wall-hydrant repairs
- Nickel-plated lead-free brass construction returns to a 3/4-inch MHT hose outlet
- Self-draining design is made to protect a compatible faucet after shutoff
Cons
- Fine-thread inlet rules it out for ordinary 3/4-inch hose-thread faucet outlets
- Correct installation depends on removing the old top section and preserving the faucet threads
Installation checks that prevent the wrong purchase
Turn off the faucet and inspect the old part before measuring. An add-on breaker normally shows the familiar garden-hose pattern at the faucet outlet. A replacement device may instead sit on a wider fine thread that belongs to the faucet manufacturer. Count neither on photos nor on a hose fitting to prove a match. Record the faucet brand and model if visible, compare the inlet and outlet descriptions, and inspect for a set screw or broken screw remnant before ordering.
For a standard add-on, thread the device on by hand first. Cross-threading brass damages the sealing surfaces quickly. A permanent break-off or locking screw is not a reason to skip the fit check: once it is tightened or snapped, later removal is harder. After installation, check for leakage with the hose removed and with the intended accessory connected. A device that vents or drains when it should be flowing can signal an incompatible setup, a damaged seal, or an installation issue.
Winter habits still matter. Remove hoses and accessories so a self-draining model can do its job, and follow the faucet maker's winterizing steps. Backflow devices have specific approval limits, so check local requirements for new work, irrigation connections, or any installation with a higher contamination risk. A licensed local plumber or building official can confirm the applicable requirement without relying on a generic online list.
FAQ
Do all hose bibb vacuum breakers fit a standard outdoor faucet?
No. Many add-on units use 3/4-inch female hose thread at the inlet and 3/4-inch male hose thread at the outlet, but replacement parts can use a manufacturer-specific fine thread. The Arrowhead PK1390, for example, has a 1-1/16-inch fine-thread inlet. Inspect the faucet and its existing breaker before selecting a replacement.
Can I leave a hose timer attached to a self-draining vacuum breaker?
Not automatically. A timer, shutoff nozzle, or closed splitter can keep downstream pressure in the connection and can also interfere with drainage. The manufacturers of the self-draining models compared here caution against continuous-pressure installations. Check the timer and faucet documentation, then use an arrangement approved for the local installation if continuous pressure is expected.
Why does a vacuum breaker drip after I turn off the faucet?
Brief drainage can be normal for a self-draining design once the hose is removed, especially as water clears from the outlet. Persistent leaking during use or from the fitting threads is different and can point to worn seals, trapped pressure, damage, or the wrong replacement. Shut off the water if needed and inspect the device rather than covering or blocking its vent.
Prices and availability were accurate at publication and can change.
